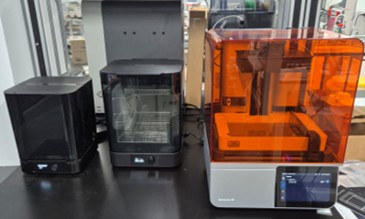

Formlabs Form 4

작성자 최고관리자 댓글 조회 작성일 26-03-05 11:47

1. Major Specifications

•Printing Technology: Low Force Display™ (LFD) based mSLA (Masked Stereolithography)

•Light Engine: LPU 4 (Light Processing Unit 4) – Features 60 high-power LED backlights

•Light Wavelength: 405 nm

•User Interface: 7-inch high-resolution touchscreen (1280 x 800)

•Connectivity: Wi-Fi (2.4/5GHz), Ethernet, USB-C

2. Printing Performance & Precision

•Max Print Speed: 100 mm/h (Most prints completed within 2 hours)

•Average Print Speed: 40 mm/h

•XY Resolution: 50 ㎛ (Achieves smoother surfaces through advanced anti-aliasing)

•Layer Thickness (Z Resolution): 25 – 300 ㎛

•Dimensional Tolerance: ± 0.15 % (Average)

3. Build Size & Physical Specs

•Max Build Volume (W x D x H): 200 x 125 x 210 mm

•Total Build Volume: 5.25 L

4. Material Compatibility

•Proprietary Resins: Supports over 38 resins from the Formlabs library (Standard, Engineering, Medical, etc.)

•Resin Handling: Next-generation automated resin cartridge system (Faster dispensing compared to previous models)
