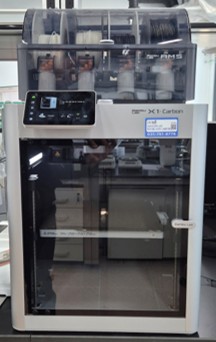

The Bambu Lab X1-Carbon is a high-performance FDM 3D printer that integrates ultra-fast printing with AI-driven technology. Below are its core specifications:
1. Major Specifications
•Printing
Technology: FDM (Fused Deposition Modeling) based on the CoreXY
architecture.
•Frame
and Housing: Features a fully enclosed body with an aluminum frame and glass
panels (door and side panels).
•AI
Intelligent Features: Equipped with a 7 ㎛ resolution Micro Lidar and an AI
camera for first-layer inspection and real-time "spaghetti" failure
detection.
•User
Interface: Includes a 5-inch high-resolution (1280 x 720) color touchscreen.
2. Printing Performance & Precision
•Max
Print Speed: Supports ultra-high-speed printing up to 500 mm/s.
•Max
Acceleration: Reaches up to 20,000 mm/s2,
maintaining precision even during rapid direction changes.
•Max
Nozzle Temperature: Capable of heating up to 300 °C
•Layer
Thickness: Adjustable between 0.1 mm and 0.3 mm.
3. Build Size & Physical Specs
•Max
Build Volume (W x D x H): 256 x 256 x 256 mm.
•External
Dimensions: 389 x 389 x 457 mm
•Net
Weight: 14.13 kg
4. Material Compatibility & AMS
•Supported
Materials: Optimized for engineering plastics such as Carbon Fiber (CF) and
Glass Fiber (GF) reinforced polymers, in addition to standard materials like
PLA, PETG, TPU, ABS, and ASA.
•AMS
(Automatic Material System): Automatically recognizes and switches between up
to 4 filaments (expandable with a hub), supporting multi-color and
multi-material prints.
